製品詳細
起源の場所: 鄭州
ブランド名: WanGu
証明: ISO
モデル番号: DWG；WGDH
支払いと送料の条件
最小注文数量: 1セット
価格: 交渉可能
パッケージの詳細: ヌードパッキング
受渡し時間: 40～60日
支払条件: LC、T/T
供給の能力: 年間200ユニット
応用: |
乾燥野菜；漢方薬；食品焼成；化学触媒乾燥；農産物加工 |
温度範囲: |
50～200℃ |
材料の厚さ: |
10～85mm |
ベルトスピード: |
0.5～5m/分 |
制御システム: |
PLC |
加熱方法: |
蒸気；電気；石炭；石油焚き熱風炉 |
蒸気圧: |
0.2.0.8 MPa |
冷却方法: |
空冷 |
材料: |
ステンレス鋼; 炭素鋼 |
電圧: |
220V/380V |
保証: |
12ヶ月保証 |
応用: |
乾燥野菜；漢方薬；食品焼成；化学触媒乾燥；農産物加工 |
温度範囲: |
50～200℃ |
材料の厚さ: |
10～85mm |
ベルトスピード: |
0.5～5m/分 |
制御システム: |
PLC |
加熱方法: |
蒸気；電気；石炭；石油焚き熱風炉 |
蒸気圧: |
0.2.0.8 MPa |
冷却方法: |
空冷 |
材料: |
ステンレス鋼; 炭素鋼 |
電圧: |
220V/380V |
保証: |
12ヶ月保証 |
Company Profile
Zhengzhou Wangu Machinery Co., Ltd., founded in 1998, is a National High-tech Enterprise specializing in R&D and manufacturing of grain drying, material drying and storage equipment. Located at No.113 Anyang Road, Shangjie District, Zhengzhou, Henan, the company covers over 26,000 square meters of modern production facilities, with products exported to over 50 countries in Southeast Asia, Africa, and South America.
With 26 years of technical accumulation, Wangu Machinery has formed a complete drying equipment product line, covering circulating dryers, continuous drying towers, rotary drum dryers, rotary tube bundle dryers, belt dryers and more, providing customized drying solutions for customers across various industries.
Product Overview

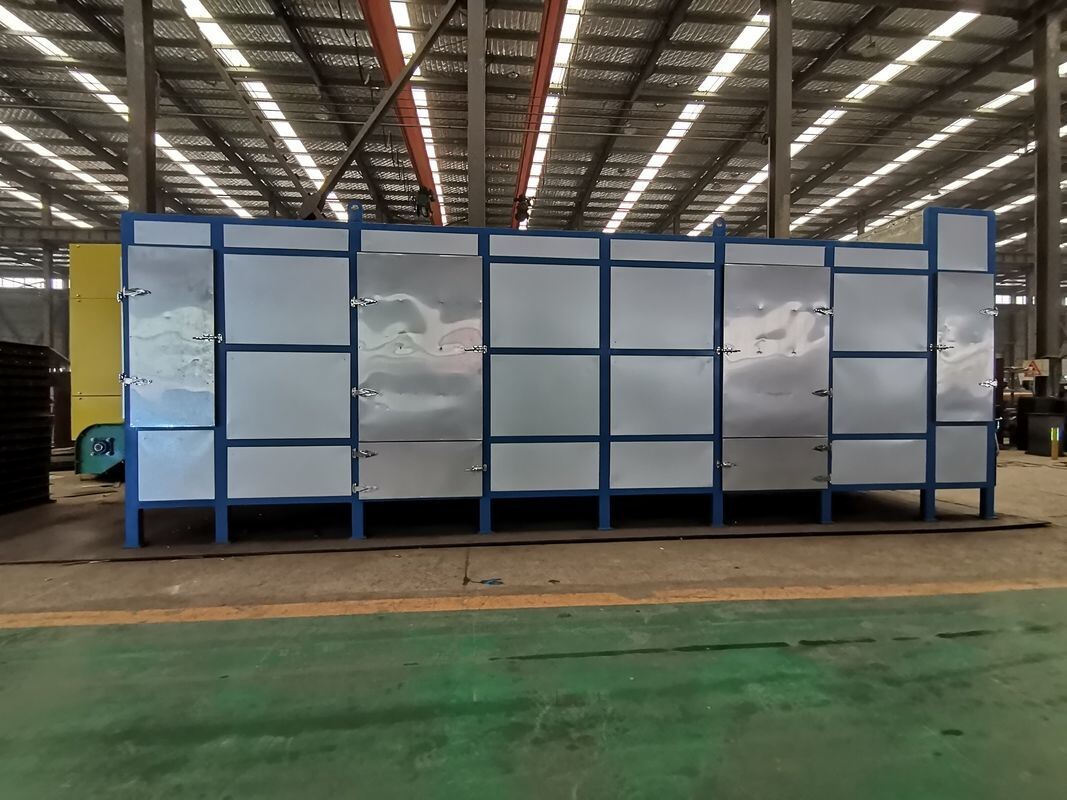

The Belt Dryer Machine is a continuous drying equipment that uses multi-layer (or single-layer) stainless steel mesh belts as material carriers, with hot air penetrating the material layer for efficient drying. Wangu Machinery offers two series: DWG Series Multi-layer Belt Dryer and WGDH Series Single-layer Belt Dryer, meeting various capacity and drying process requirements.
The DWG series features a 3-layer mesh belt structure where materials fall layer by layer with counter-flow hot air penetration, suitable for large-volume continuous drying; the WGDH series is a single-layer stainless steel structure, ideal for food-grade and pharmaceutical-grade applications with special material requirements.
Main Applications
|
Application |
Process Features |
|
|
Low-temperature slow drying of sliced/striped vegetables, preserving color and nutrition |
|
|
Precise temperature-controlled drying of herbal medicine slices, preserving active ingredients |
|
|
Not only drying but also baking, roasting or curing processes |
|
|
Drying of granular/flake chemical products without breakage or pulverization |
|
|
Continuous drying of grains, fruit slices, mushrooms and other agricultural products |
DWG Series Multi-layer Belt Dryer Specifications
The DWG series features a 3-layer mesh belt structure with steam heat exchange, suitable for large-volume continuous drying. 6 standard models cover different capacity requirements.
|
Model |
Units |
|
Drying Length |
(kgH₂O/h) |
|
|
|
|
|
(kg) |
|
DWG3×6/1.2 |
4×3 |
1.2 |
6×3 |
120–400 |
310–550 |
750 |
21 |
26.5 |
7.8×2.2×4.5 |
4600×3 |
|
DWG3×8/1.2 |
4×3 |
1.2 |
8×3 |
150–450 |
350–590 |
820 |
30.8 |
35.3 |
9.8×2.2×4.5 |
4700×3 |
|
DWG3×10/1.2 |
5×3 |
1.2 |
10×3 |
220–550 |
400–700 |
1000 |
37.4 |
41.9 |
11.8×2.2×4.5 |
5700×3 |
|
DWG3×8/1.6 |
4×3 |
1.6 |
8×3 |
230–600 |
450–850 |
1060 |
42 |
46.5 |
9.8×2.6×4.7 |
5500×3 |
|
DWG3×10/1.6 |
5×3 |
1.6 |
10×3 |
290–750 |
480–970 |
1320 |
51 |
55.5 |
11.8×2.6×4.7 |
6500×3 |
|
DWG3×8/2.0 |
4×3 |
2.0 |
8×3 |
290–750 |
480–970 |
1350 |
56 |
60.5 |
9.8×3.1×4.9 |
6450×3 |
WGDH Series Single-layer Belt Dryer Parameters
The WGDH series is a single-layer stainless steel mesh belt structure, suitable for food-grade and pharmaceutical-grade applications with strict hygiene requirements, with a wider temperature range (50–200°C).
|
Parameter |
Value |
|
Model |
WGDH 1-5 |
|
Capacity |
1000 kg/h |
|
Belt Width |
1000 mm (1m) |
|
Belt Speed |
0.5–5 m/min( Adjustable) |
|
Temperature Range |
50–200°C |
|
Drying Time |
30–60 /minutes |
|
Material |
Stainless Steel |
|
Control System |
P Full automatic |
|
Cooling Method |
Air cooling |
|
Voltage |
220V / 380V |
Core Features & Advantages
|
No. |
Feature |
Description |
|
1 |
|
Materials receive only gentle vibration on the belt, no breakage or pulverization, suitable for fragile materials |
|
2 |
|
Not only drying but also baking, roasting or curing, multi-function maximizing ROI |
|
3 |
|
Air volume, temperature, residence time and feed speed all precisely adjustable for optimal drying |
|
4 |
Uniform Air Distribution |
Unique air distribution device ensures uniform hot air, consistent drying quality across all layers |
|
5 |
|
|
|
6 |
|
|
|
7 |
|
PLC full-automatic control, one-button start, automatic monitoring, low labor intensity |
|
8 |
Easy Maintenance |
Simple structure, easy installation, long-term operation, convenient use and maintenance |
|
9 |
|
|
|
10 |
|
|
